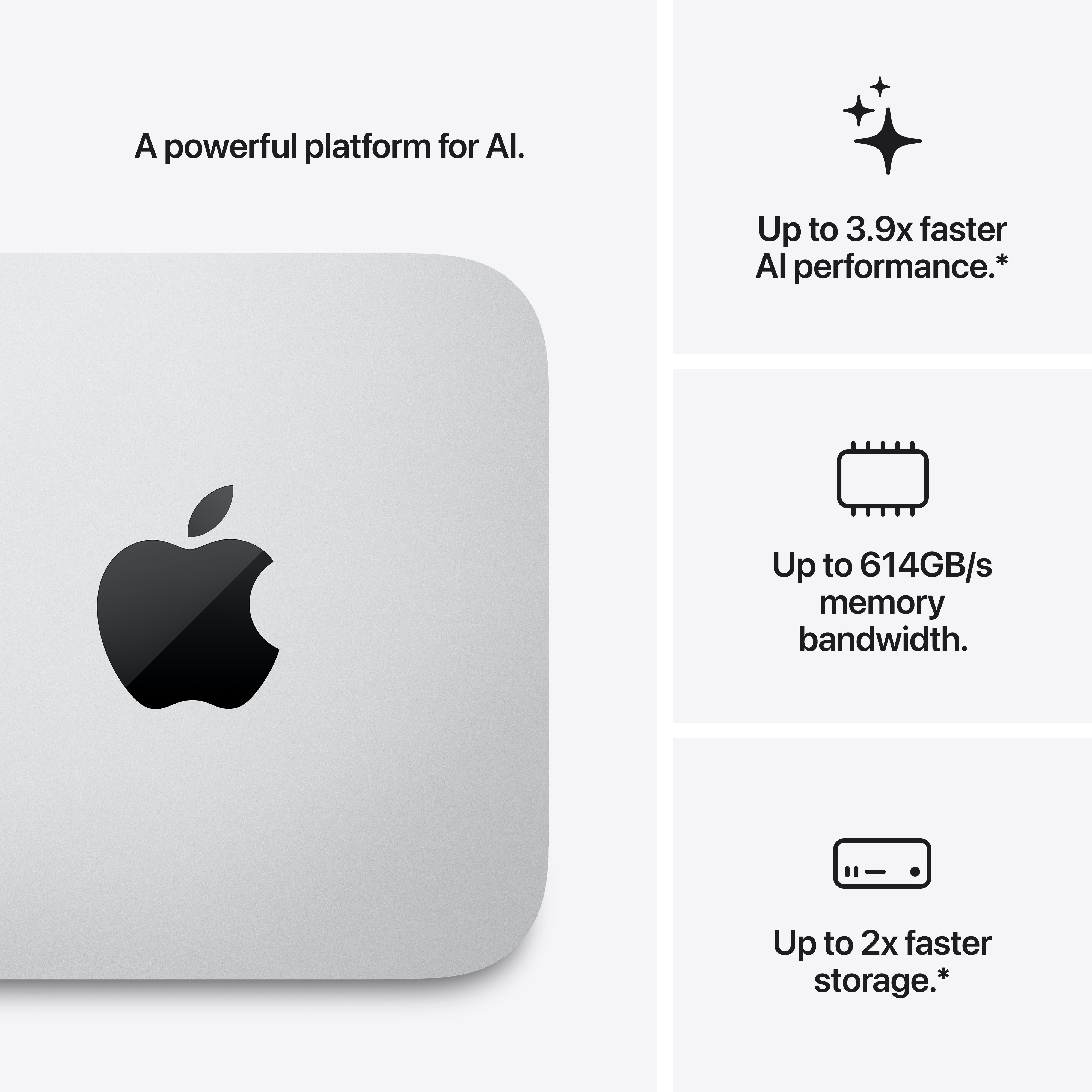

Mac Studio M5 Max (2026)

Silver
Price

Apple M5 Max chip
18-core CPU with 6 super cores and 12 performance cores
32-core GPU
Neural Accelerators
Hardware-accelerated ray tracing
16-core Neural Engine
460GB/s memory bandwidth
Media Engine
Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Video decode engine
Two video encode engines
Two ProRes encode and decode engines
AV1 decode
Configurable to:
M5 Max with 18-core CPU, 40-core GPU, and 16-core Neural Engine (614GB/s memory bandwidth)
Apple M5 Ultra chip
30-core CPU with 10 super cores and 20 performance cores
64-core GPU
Neural Accelerators
Hardware-accelerated ray tracing
32-core Neural Engine
1.2TB/s memory bandwidth
Media Engine
Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Two video decode engines
Four video encode engines
Four ProRes encode and decode engines
AV1 decode
Configurable to:
M5 Ultra with 36-core CPU, 80-core GPU, and 32-core Neural Engine (1.2TB/s memory bandwidth)

36GB
36GB unified memory
Configurable to:
48GB, 64GB, or 128GB (M5 Max with 18-core CPU and 40-core GPU)
96GB
96GB unified memory
Configurable to:
256GB
or 512GB (M5 Ultra with 36-core CPU and 80-core GPU)

512GB
512GB SSD
Configurable to:
1TB, 2TB, 4TB, or 8TB
1TB
1TB SSD
Configurable to:
2TB, 4TB, 8TB, or 16TB
Display Support
M5 Max
Supports up to five external displays over any combination of Thunderbolt and HDMI ports:
Five displays: Four displays up to a native resolution of 6K at 60Hz or 4K at 165Hz, plus a fifth display with up to 5K at 60Hz over HDMI
Up to three displays: Two displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz, plus a third display with up to 5K at 60Hz over HDMI
Supports up to four external displays over a single Thunderbolt port
Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds
Supports variable refresh rate (VRR), HDR, and multichannel audio
M5 Ultra
Supports up to eight external displays over any combination of Thunderbolt and HDMI ports:
Eight displays up to a native resolution of 6K at 60Hz or 4K resolution at up to 165Hz
Up to four displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz
Supports up to four external displays over a single Thunderbolt port
Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds
Supports variable refresh rate (VRR), HDR, and multichannel audio

Built-in speaker
3.5 mm headphone jack with advanced support for high-impedance headphones
HDMI port supports multichannel audio output
Connections and Expansion
Thunderbolt 5
10Gb
Ethernet
USB-A
HDMI
2.1
3.5 mm headphone jack
Four Thunderbolt 5 (USB‑C) ports with support for:
Thunderbolt 5 (up to 120Gb/s)
USB 4 (up to 120Gb/s)
USB 3 (up to 10Gb/s)
DisplayPort 2.1
Two USB 3 (USB‑A) ports (up to 5Gb/s)
HDMI 2.1 port
10Gb Ethernet
3.5 mm headphone jack
On front (M5 Max):
Two USB-C ports (up to 10Gb/s)
SDXC card slot (UHS-II)
On front (M5 Ultra):
Two Thunderbolt 5 ports (up to 120Gb/s)
SDXC card slot (UHS-II)
Communications

Apple N1 wireless networking chip
Wi‑Fi 7 (802.11be)2
Bluetooth 6
Thread networking technology
Ethernet
10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Height: 3.7 inches (9.5 cm)
Width: 7.7 inches (19.7 cm)
Depth: 7.7 inches (19.7 cm)
Weight (M5 Max): 6.0 pounds (2.7 kg)3
Weight (M5 Ultra): 8.0 pounds (3.6 kg)3
Width:
7.7 inches (19.7 cm)
Depth:
7.7 inches (19.7 cm)
Height:
3.7 inches (9.5 cm)

Line voltage: 100–240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 480W
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: –40° to 116° F (–40° to 47° C)
Relative humidity: 5% to 90% noncondensing
Operating altitude: tested up to 16,400 feet (5000 meters)

Mac Studio
Power cord

macOS
Apple Intelligence5 and Siri AI6
The next generation of Apple Intelligence is centered around you, integrated into your apps, and built with privacy. Apple Intelligence powers Siri AI — an entirely new version of Siri that’s more personal, conversational, and powerful, along with helpful features across apps.

Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
Features include:
VoiceOver
Zoom
Motion, display, and text settings
Accessibility Reader
Voice Control
Switch Control
Closed Captions
Live Captions
Personal Voice and Live Speech

App Store
Books
Calendar
Contacts
FaceTime
Find My
Freeform
GarageBand
Home
iMovie
iPhone Mirroring
Keynote
Mail
Maps
Messages
Music
News
Notes
Numbers
Pages
Passwords
Photo Booth
Photos
Podcasts
Preview
QuickTime Player
Reminders
Safari
Shortcuts
Stocks
Time Machine
Tips
TV
Voice Memos
Weather

Configure your Mac Studio with these options at apple.com:
M5 Max with 18-core CPU, 40-core GPU, and 16-core Neural Engine
48GB, 64GB, or 128GB unified memory (M5 Max with 18-core CPU and 40-core GPU)
1TB, 2TB, 4TB, or 8TB SSD
M5 Ultra with 36-core CPU, 80-core GPU, and 32-core Neural Engine
256GB unified memory
512GB unified memory (M5 Ultra with 36-core CPU and 80-core GPU)
2TB, 4TB, 8TB, or 16TB SSD
Mac Studio and the Environment
Progress toward Apple 2030
Apple 2030 is our goal to be carbon neutral across our value chain. We design our products to be less carbon intensive by prioritizing the use of recycled and renewable content and low-carbon materials while focusing on the energy efficiency of our software and hardware.
Materials
Mac Studio is made with 35% recycled content,8 including:
100% recycled aluminum in the enclosure and thermal module sheet, chassis, and brackets
100% recycled copper in the thermal module pedestal and multiple printed circuit boards
100% recycled gold plating and tin solder in all Apple‑designed printed circuit boards
90% recycled steel in multiple thermal module components
Packaging
100% fiber-based packaging9
Energy
ENERGY STAR® certified10
Smarter chemistry11
All of the materials used in Apple products, accessories, and packaging are covered by the requirements of our Regulated Substances Specification, which was one of the first in industry to restrict the use of key substances of concern. See the latest Environmental Progress Report to understand Apple’s recent efforts in phasing out these chemistries.

1 of 28 among Apple chips since 2020
